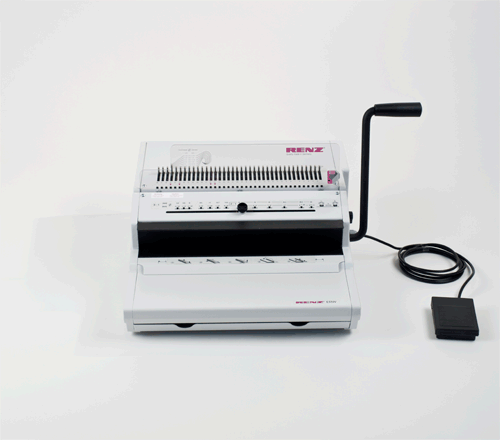

Renz ERW 3:1 Electric Wire Punch

$3,912.00 Regular price was $4,268.00

ERW 3:1 Pitch Wire Binding Machine

Combined electrical punch and manual closing machine for RENZ RING WIRE‚® wire comb binding in 3:1 pitch The powerhouse that used professional punch technology. punches electrically, binds manually. The ideal solution for shorter and medium-sized runs. The punching cycle uses a foot switch. 38 selectable punching dies, variable margin for perfectly adjusting to format, up to 34 cm. Punches up to 25 sheets (2.5 mm) and binds up to 135 sheets. Features ergonomic work flow from top to botton wire holder for binding elements comfortable and easy inserting of the pages when binding best cutting pressure ratio compact, strong construction quality "Made in Germany"

Technical Data

  • Working width: max. 340 mm
  • Punching thickness: max. 25 sheets (70/80 gr./m² paper)
  • Book thickness: max. 13,5 mm
  • Punch and binding capacity: max. 250 books/h (depending on product, logistics and operator)
  • Possible wire diameters: 3/16" - 5/8" (5,5 - 16 mm)
  • Pitch: 3:1
  • Time required for diameter change: only a few seconds
  • Number of punching pins: 38
  • Punching pins individually deselectable: yes
  • Adjustable margin: yes
  • Number of loops / loops on A4: 34
  • Machine: Lenght x Width x Height: 51 x 54 x 25 cm
  • Packing: Length x Width x Height: box / 63 x 60 x 34 cm
  • Weight: net, gross: 39 kg / 43 kg
  • Power supply: 230V / 50Hz / 250W
