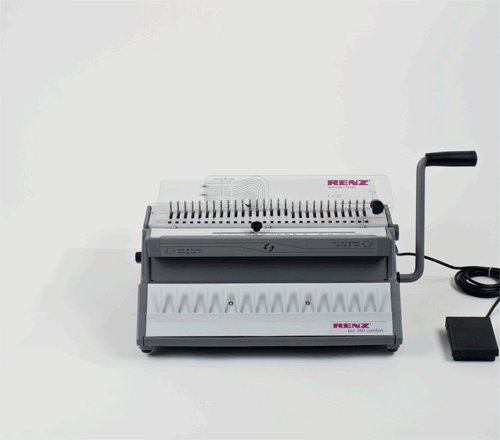

Renz Eco S 360 comfort 2:1 Wire Punch

$2,345.00 Regular price was $2,559.00

 Eco 360 comfort

Combined electrical punch and manual closing machine for One Pitch® wire comb binding in 2:1 pitch

The compact electric punch binds manually. an inexpensive solution for shorter and medium-sized runs. The punching cycle uses a foot switch. 28 selectable punching dies, variable margin for perfectly adjusting to the format, up to 36 cm. Punches up to 25 sheets (2.5 mm) and binds up to 340 sheets.



  • Working width: max. 360 mm
  • Punching thickness: max. 25 sheets
  • (70/80 gr./m² paper)
  • Book thickness: max. 34 mm (340 sheets)
  • Punch and binding capacity: max. 200 books/h (depending on product, logistics and operator)
  • Possible wire diameters: 1/4" - 1 1/2" (6,9 - 38 mm)
  • Pitch: 2:1
  • Punching: square holes 3,5 x 5,5 mm
  • Time required for diameter change: only a few seconds
  • Number of punching pins: 28
  • Punching pins individually deselectable: yes
  • Adjustable margin: yes
  • Number of loops / loops on A4: 23
  • Machine: Lenght x Width x Height: 43 x 56 x 18 cm
  • Packing: Length x Width x Height: box / 63 x 60 x 34 cm
  • Weight/ net, gross: 28,5 kg / 32,5 kg
  • Power supply: 230V / 50 Hz / 90 W
