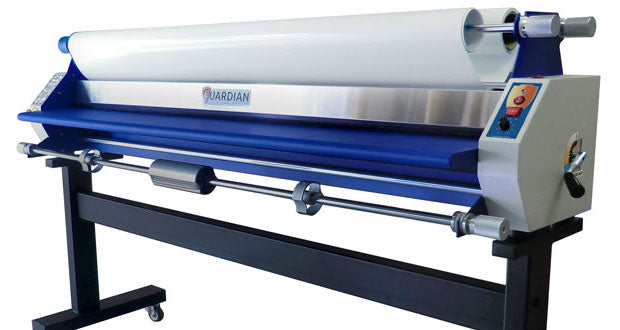

Guardian Cold 65" Wide Format Laminator

$125.00

Guardian Cold 65"

Guardian Laminators™ are an affordable, easy to use solution for all of your finishing, laminating and mounting needs. The Guardian system’s intuitive design makes for quick and easy use, maintenance, and cleaning… saving you time on production. Solid, all steel construction provides high quality performance and ensures Guardian Laminators are built to last.

FEATURES (PDF)

  • All steel component construction
  • Forward/reverse functionality
  • Upper and lower idler bars
  • Variable speed (up to 23 ft/min)
  • 65’” Laminating width
  • Lower mandrel with double ended tension brake
  • Adjustable pressure settings
  • Easy loading drop-in supply shafts
  • Removable feed table
  • Crowned high-quality silicone rollers
  • One (1) year parts warranty
  • Optional take-up system
  • Price includes shipping dock to dock (no special access)

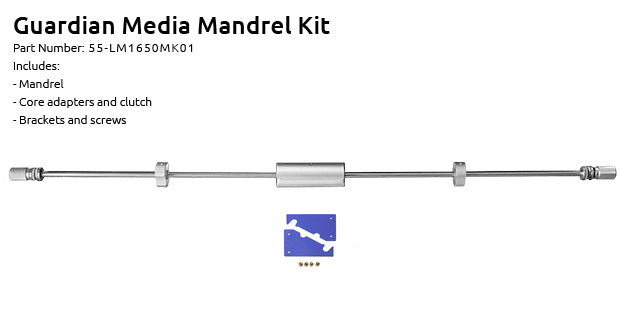

  • Optional media mandrel kit
Specifications
Lamination Speed Variable, up to 23 ft/min (7m/min)
Laminate Width 64.96 in (1650 mm)
82.67 in (2100 mm)
Maximum Media Thickness 0.57 in (14.48 mm)
Power - Cold 120 V / 60Hz, 0.5A, 25 Watts
Power - Heat Assist 120 V / 60Hz, 9A, 1300 Watts
Heat Assist Temperature Range 104˚-122˚F (40˚-50˚C )
Feed Tray Height 36 in (916 mm)
Assembled Dimensions 65" - 73.2 x 22.4 x 51.18 in
(1860 x 570 x 1300 mm)
82" - 90.2 x 22.4 x 51.18 in
(2295 x 585 x 670 mm )
Shipping Dimensions 65" - 78.8 x 26.3 x 23.2 in
(2000 x 490 x 590 mm)
82" - 95.8 x 26.3 x 23.2 in
(2435 x 585 x 670 mm)508
Shipping Weight 65" - 470 lbs (213 kg)
82" - 508 lbs (230 kg)
