FC114ASP Digital Strike Perf Ready Creasing, Numbering Machine

$22,644.00

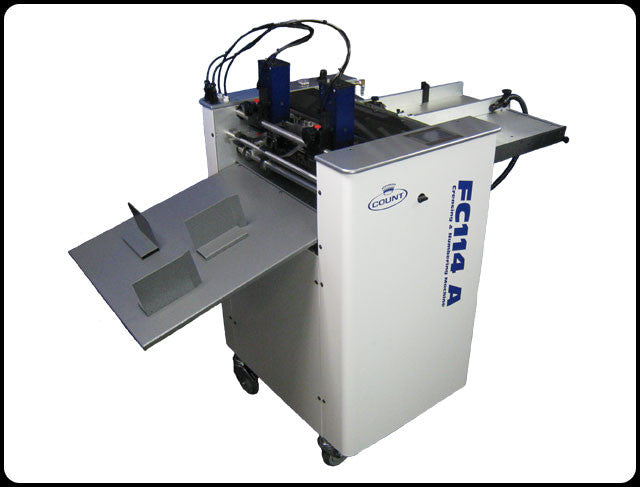

FC114 ASP Digital Strike Perf Ready Creasing, Numbering Machine

(CALL FOR PRICE)

With the FC114 series, you can handle high quality numbering, creasing and perforating all-in-one. The latest addition to the series, the COUNT FC114ASP includes a strike perforating head, capable of partial page and intermittent perforating. Strike perforating makes it easy to create custom 2 and 3-part partitions. This machine utilizes a high speed bottom vacuum feed system. It delivers accurate CAM actuated compression creasing with 2 crease widths, pneumatic numbering up to 24 times virtually anywhere on the sheet, plus rotary, strike and optional micro perforating. It’s a compact, incredibly easy to use and highly versatile “all in one” solution that includes automatic “one-touch” set-ups.
  • The FC114A has a reliable bottom vacuum feed system with a register guide.
  • Simple programming allows you to number, crease or perforate individually.

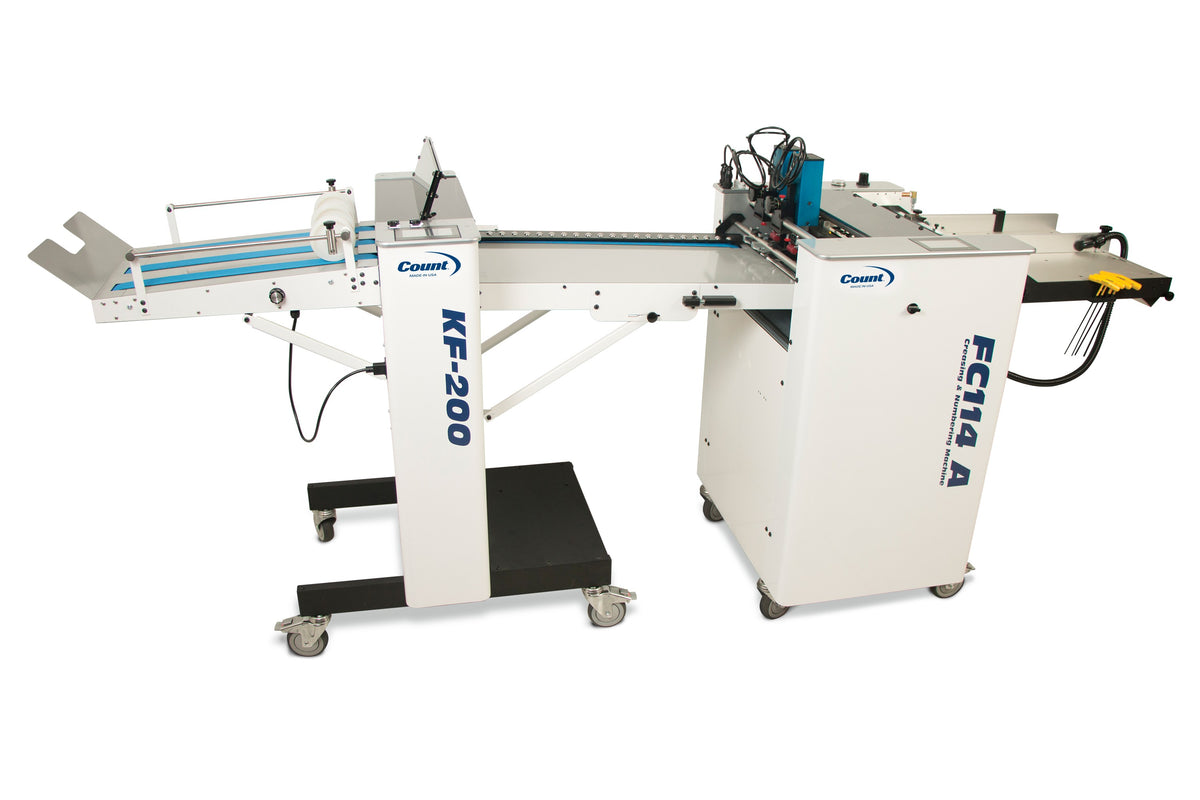

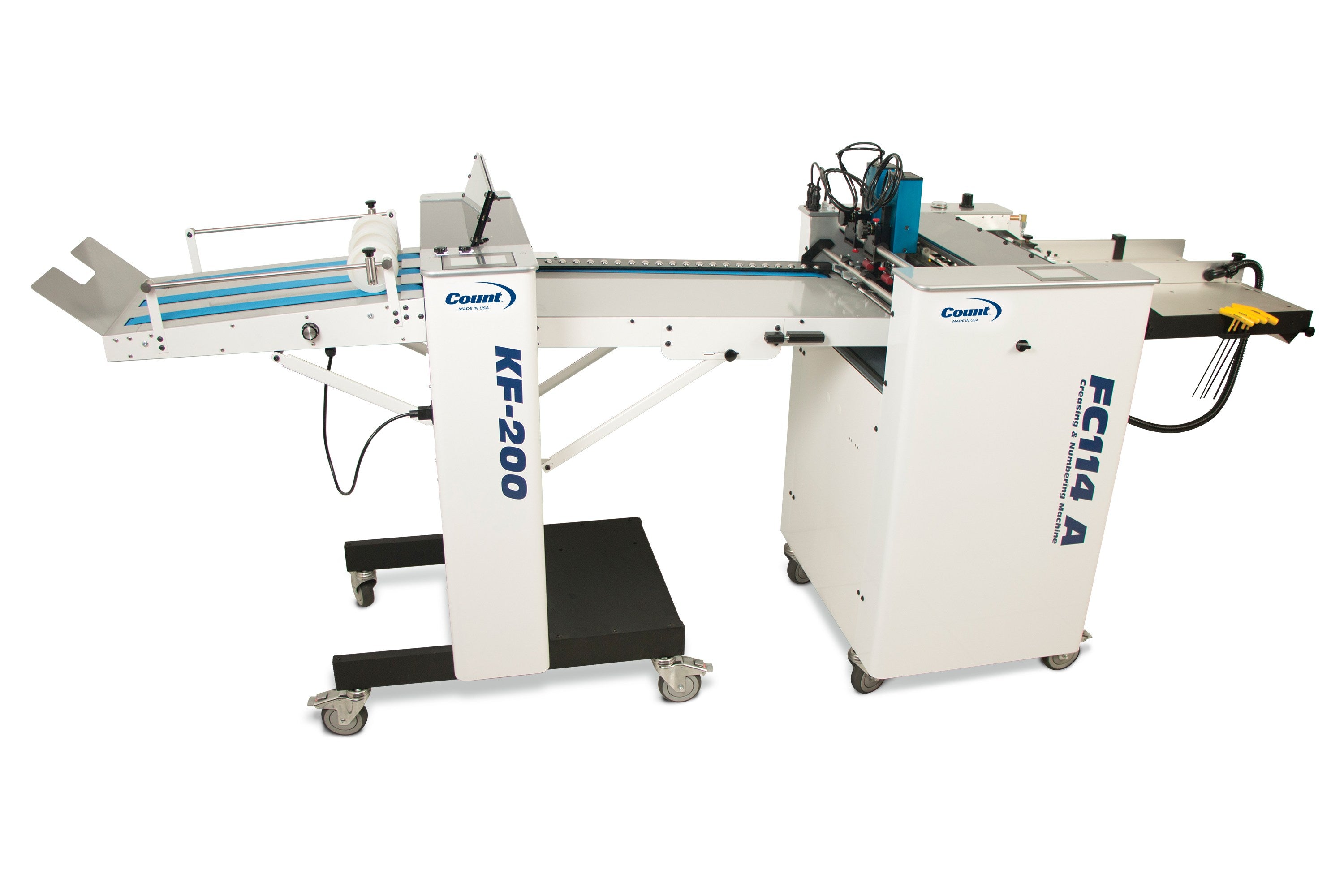

  • Accommodates inline folders (see COUNT KF-200).
  • Complete perforating assembly included, with linear perf capabilities up to 4 perfs per sheet-optional micro-perf and score wheel assemblies are available.
  • User-friendly touch screen for easy set up and control of the machine.

Creasing features include:

  • Two-sided die creasing rod accommodates for heavier stock-simply remove and flip over to change from narrow to wide crease.
  • Automated distance recognition–allows auto setups for your most common creases and corresponding folds.
  • CAM actuated compression creasing.

Numbering features:

  • Includes reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros and 4 repeats.
  • Flexibility to apply numbers virtually anywhere on a sheet–from lead edge, place numbers within 1 mm of previous number.
  • Number single sheets, or crash number up to a 10-part carbonless form.
  • Choice of black or red ink, in patented self-inking disposable cartridges–no re-inking required!–for approx. 25,000 impressions per cartridge.
  • Program each numbering head individually for multiple numbering.
  • Product Specifications

    Model Number
    FC114A
    Paper Feed
    Vacuum
    Max Crease Speed
    4,500
    Max Perf/Score Speed
    12,000
    Paper Weight Range
    60 – 350
    Max Sheet Size
    24.0 L x 18.0 W in (61.0 x 45.7 cm)
    Min Sheet Size
    4.5 L x 6.0 W in (11.4 x 15.2 cm)
    Max Crease Locations per Sheet
    12
    Max Perf/Score Locations per sheet
    4
    Paper Fold Options
    Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Roll Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind: No Hinge, Single Hinge, Double Hinge
    Scoring
    Optional
    Touch Screen Controls
    True
    Product Dimensions
    63.0" L x 29.0" W x 43.0" H
    Product Weight
    220 lbs (100 kg)
    Electrical
    110 V, 50 Hz, or 220 V, 60 Hz (Check before purchasing)
    Max Numbering Speed
    8,000
    Numbering Heads
    Pneumatic
