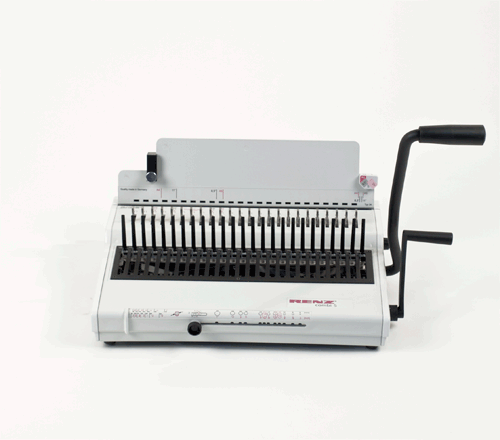

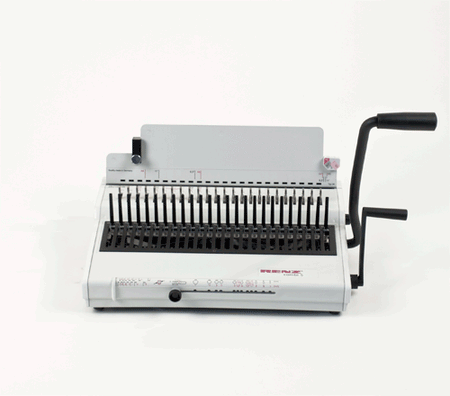

Renz Combi S Comb Punch

$581.00 Regular price was $699.00

Renz Combi S Comb Punch

Combined manually operated punch and binding machine, up to max. size 34 cm For more advanced requirements. For all documents up to 24 cm (13.5") binding width. A combined two-lever system for manual punching and binding. Adjustable margin control and disengageable punch pings for easy format adjustment. US-pitch 21 rings in A4

Technical Data

  • Binding method: plastic comb binding
  • Pitch: US or EUROP pitch
  • Working width: max. 340 mm
  • Punching thickness: max. 2,5 mm / 25 sheets (70/80 gr./m² paper)
  • Book thickness: max. 48 mm / 480 sheets (70/80 gr./m² paper)
  • Binding capacity: max. 250 books/h (depending on product, logistics and operator)
  • Disengageable punching pins: yes
  • Number of punching pins in US pitch: 24 (punches up to ~ 1,5 mm to the edge)
  • Number of punching pins in EUROP pitch: 28 (punches up to ~ 6 mm to the edge)
  • Adjustable margin: yes Shape of binding element: round: ƒ¸ 6 up to 28 mm oval: ƒ 32 up to 52 mm
  • Number of rings on A4 length in US pitch: 21 Number of rings on A4 length in EUROP pitch: 24
  • Machine: Length x Width x Height: 36 x 49 x 9 cm
  • Packing: Length x Width x Height: box / 60 x 48 x 28 cm
  • Weight / net, gross: 9,3 kg / 11,9 kg
