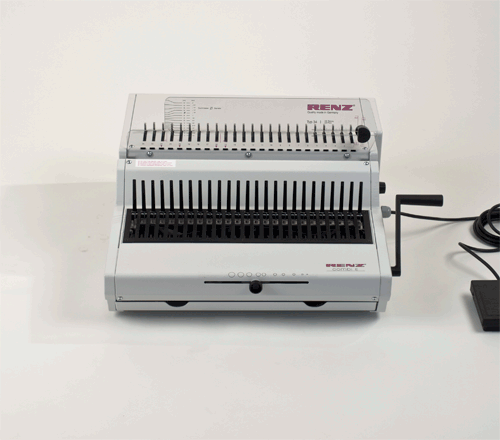

Renz Combi E Comb Punch Electric
Renz combi Electric Comb Punch & Bind
Combined electrical punch and manual binding machine for permanent use The professional solution for publications from small formats tp to 34 cm (13.5") binding width. A comfortable model with electrical drive and one lever. Punches up to 2.5 mm thickness comfortably by pressing the foot pedal. The binding capacity is up to 300 books per hour. Adjustable margin control and disengageable punch pins for easy format adjustment. US pitch 21 rings in A4
Technical Data
- Binding method: plastic comb binding
- Pitch: US or EUROP pitch
- Working width: max. 340 mm
- Punching thickness: max. 2,5 mm / 25 sheets (70/80 gr./m² paper)
- Book thickness: max. 48 mm / 480 sheets (70/80 gr./m² paper)
- Binding capacity: max. 300 books/h (depending on product, logistics and operator)
- Disengageable punching pins: yes
- Number of punching pins in US pitch: 24 (punches up to ~ 1,5 mm to the edge)
- Number of punching pins in EUROP pitch: 28 (punches up to ~ 6 mm to the edge)
- Adjustable margin: yes
- Shape of binding element: round: Ƹ 6 up to 28 mm oval: Ƹ 32 up to 52 mm
- Number of rings on A4 length in US pitch: 21
- Number of rings on A4 length in EUROP pitch: 24
- Machine: Length x Width x Height: 49 x 50 x 25 cm
- Packing: Length x Width x Height: box / 63 x 60 x 34 cm
- Weight / net, gross: 36,5 kg / 40,5 kg
- Power supply: 230V / 50Hz / 250W
