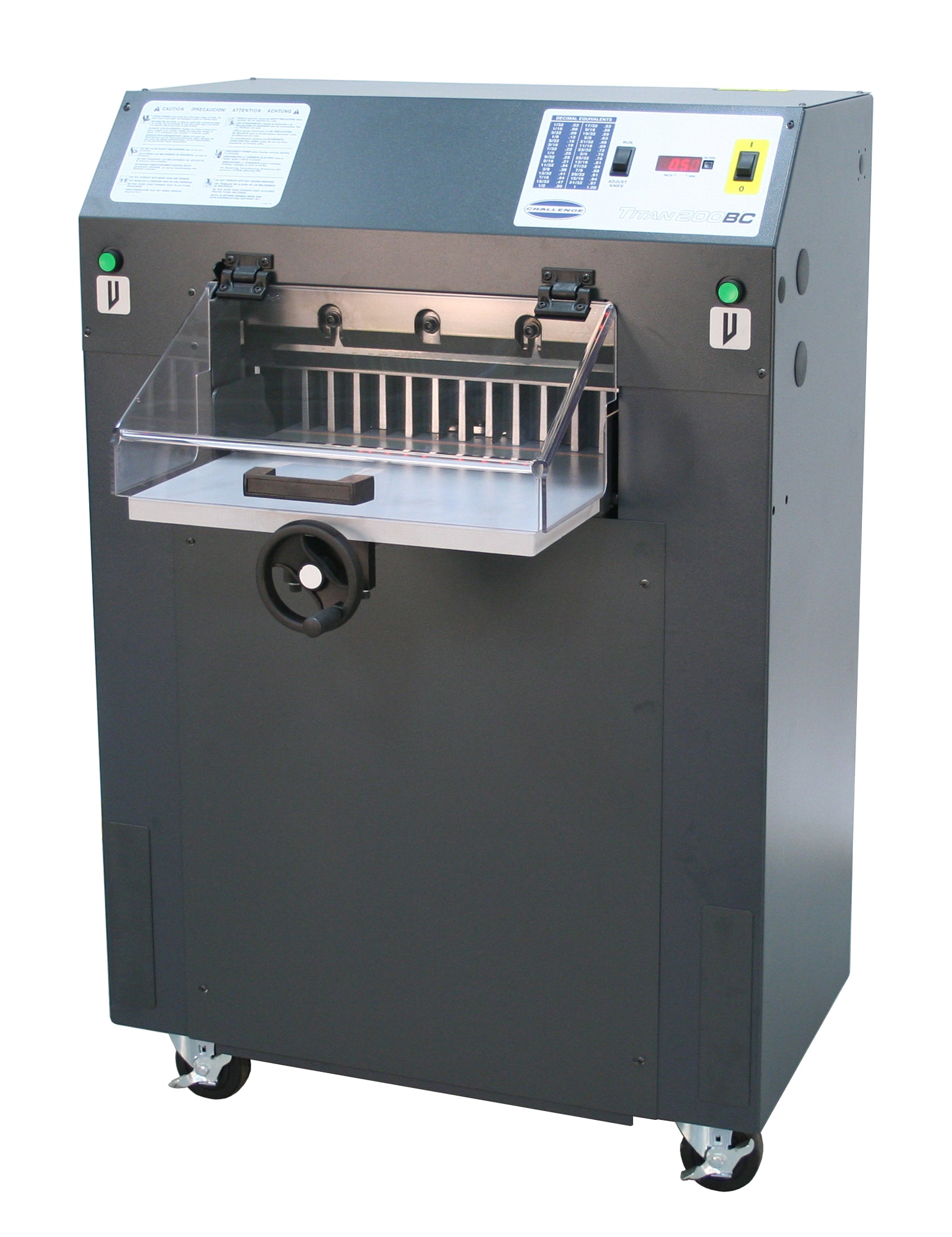

Challenge Titan 200BC Paper Cutter w/Beams CMC-200-BC

Titan 200BC Paper Cutter
CMC-200-BC With Light Beams
Key Benefits/Features:
(Email us for a Price Quote )
✓ Hydraulic cutting & clamping
✓ Easy to read LED digital display
✓ Maintenance free red LED cut line light
✓ Hydraulic motor runs only during cutting cycle
✓ Lockable heavy duty casters for portability
✓ Steel & cast iron construction
✓ Plugs into standard 110V electrical socket
✓ 1-year warranty
Safety Features:
✓ UL/cUL listed and conforms to CE and ANSI B65.3 safety specifications
✓ Safety dual-cut buttons to activate the cutting cycle
✓ Rear table safety cover
✓ Cutting area protection – standard safety shield or light beam curtain option
Included: (1) standard knife, (3) plastic cutting sticks, (1) jogging aid, (1) manual, (1)
tool kit, & (1) knife change safety holder assembly

Cutting Width 20”/508 mm
Backgauge Control Manual
Clamp Opening 3-1/4”/83 mm
Clamping Force minimum 1,250 lbs/563 daN
maximum 2,500 lbs/1,125 daN
Min Cut (w/out false clamp plate) 1/2”/13 mm
Min Cut (with false clamp plate) 1-7/8”/48 mm
Maximum Cut Depth 20”/508 mm
Table In Front of Knife 16”/406 mm
Behind Knife 20”/508 mm
Table Height 36”/914 mm
Overall Width 36”/914 mm
Overall Length 50-7/8”/1300 mm
Overall Height 52-1/4”/1330 mm
Will pass through door (assembled) 36-1/4”/920 mm
(table/treadle/front shield out) 29”/737 mm
Net Weight (approx.) 755 lbs/343 kg
Shipping Weight (approx.) 980 lbs/444 kg
