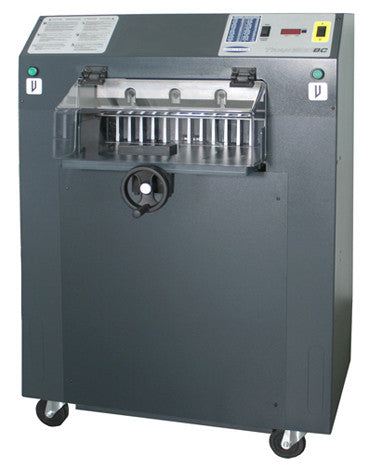

Challenge Titan 200BC Paper Cutter w/Shield

$11,245.00
Key Benefits/Features:
  • Hydraulic cutting & clamping
  • Tilt Shield
  • Easy to read LED digital display
  • Red LED Line Light
  • Hydraulic motor runs only during cutting cycle
  • Lockable heavy duty casters for portability
  • Steel & cast iron construction
  • Plugs into standard 110V electrical socket
  • 1-year warranty
  • Call or Email us for a Price Quote
Safety Features:
  • UL/cUL listed and conforms to CE and ANSI B65.3 safety specifications
  • Safety-dual cut buttons to activate the cutting cycle
  • Rear table safety cover
  • Cutting area protection – standard safety shield or light beam curtain option
Included: (1) standard knife, (3) plastic cutting sticks, (1) jogging aid, (1) manual, (1)
tool kit, & (1) knife change safety holder assembly
SPECIFICATIONS
  • Cutting Width 20"/50.8 cm
  • Backgauge Control Manual
  • Clamp Opening 3-1/4"/8.3 cm
  • Clamping Force
    • minimum 1,250 lbs/563 daN
    •  maximum 2,500 lbs/1,125 daN
  • Min Cut (w/out false clamp plate) 1/2"/1.3 cm
  • Min Cut (with false clamp plate) 1-7/8"/4.8 cm
  • Maximum Cut Depth 20"/50.8 cm
  • Table
    • In Front of Knife 16"/40.6 cm
    • Behind Knife 20"/50.8 cm
  • Table Height 36"/91.4 cm
  • Overall Width 36"/91.4 cm
  • Overall Length 50-7/8"/130 cm
  • Overall Height 52-1/4"/133 cm
  • Will pass through door (assembled) 36-1/4"/92 cm
    •  (table/treadle/front shield out) 29"/73.7 cm
  • Net Weight (approx.) 755 lbs/343 kg
  • Shipping Weight (approx.) 980 lbs/444 kg
ELECTRICAL UL/CUL LISTED & CE
Standard: ¾ H.P., Single-Phase, AC, 60 Hz, 120 Volt, 12
Amps, Service size 15 Amps. Power cord included.
Requires Receptacle Type: NEMA 5-15R
Optional: 1-½ H.P., Single-Phase, AC, 60 Hz, 208/230 Volts,
12 Amps, Service size 15 Amps. Power cord included.
Requires Receptacle Type: NEMA 6-15R or 6-20R.
