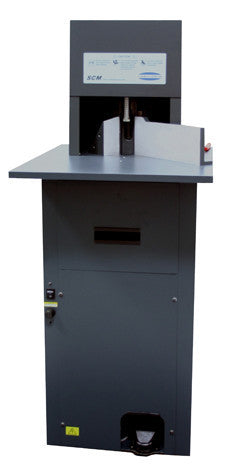

Challenge SCM Manual Cornering Machine

$3,750.00
Manual
Key Benefits/Features:
  • Manual operation
  • 2"/5 cm lift capacity
  • Precise cutting action
  • Gravity chip disposal

Call or Email for Sales Price


Included: (1) knife (specify size), (1) die (specify size), (1) tool kit, (1) jogging/paper handling aid & (1)
manual

Maximum Lift Height 4" / 10 cm
Range of Lift Widths Open
Corner Sizes Handled 1/8" to 5/8" / 3 - 16 mm
DIMENSIONS
Table Depth 24" / 6 cm
Table Width 20-1/4" / 51.5 cm
Table Height 36" / 91 cm
Overall Height 52" / 132 cm
Floor Space Needed 24" x 20-1/4" / 61 x 51.5 cm
Net Weight (approximate) 190 lbs / 86 kg
Shipping Weight (approximate) 265 lbs / 120 kg
ELECTRICAL
1 Phase, 60 Hz, AC.   Pump: 1/2 HP
115 Volts, 13.5 Amps (service size 20 Amps)

Challenge reserves the right to make changes to any product or specification without notice and without incurring responsibility to existing units.


Size                Knife                Die
Radius           Number            Number
1/8"/3.2 mm    6721-2             6722-2
1/4"/6.3 mm    6721-4             6722-4
3/8"/9.5 mm    6721-6             6722-6
1/2"/12.7 mm  6721-8             6722-8
5/8"/15.9 mm  6721-10           6722-10
Straight Diagonal 6761           6762
(1-1/4"/32 mm max. diagonal cut)
