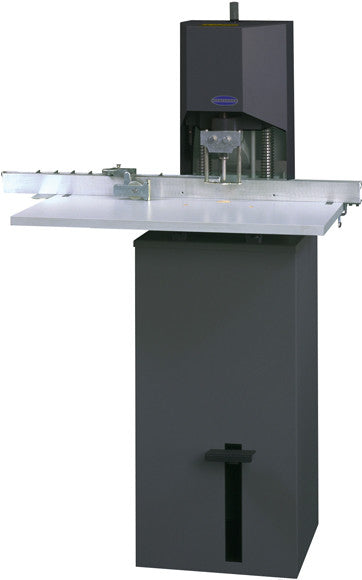

Challenge JF Single Spindle Drill CMC-331-11A

Key Benefits/Features:

(email us for a price quote)
✓ Foot pedal operation
✓ 2”/51mm drilling capacity
✓ 13 hollow drill bit sizes available
✓ Adjustable margins
✓ Automatic trip side guide – 7 stops included
✓ Automatic paper chip removal
✓ Rugged construction
Included: (1) 1/4"/6.4 mm & (1) 5/16"/7.9 mm hollow drill bits, (12) 1-1/2”/38 mm wood
drilling blocks, (1) auto-trip backgauge, (1) manual & (1) tool kit

SPECIFICATIONS
Drill Head Operation Foot Lever
Drill Bit Diameters (2” capacity) 13 sizes: 1/8” to 1/2”/
3 to 13 mm
Maximum Drilling Capacity* 2”/51 mm
Min. Distance Between Holes
(with adjustable stops) 3/8”/9.5mm
Adjustable Range
(bit to side guide) 0 to 18-1/2”/0 to 470 mm
(bit to backgauge) 0 to 4”/0 to 100 mm
Table Height 37”/940 mm
Overall Height 60”/1520 mm
Overall Length 32”/810 mm
Overall Width 42”/1070 mm
Floor Space Required 9.3 sq. ft./0.86 sq. m.
Net Weight (approx.) 154 lbs/70 kg
Shipping Weight (approx.) 225 lbs/102 kg
