This automated tabletop folder provides reliability, durability and speed in a compact and convenient design.
Feeds laser, offset and other digital printed stocks
Air/vacuum feed system handles sensitive imaged stocks to prevent marking
Requires less floor space than larger floor model folders but can handle a 14 x 20″ nominal sheet and up to a 14 x 25.5″ sheet
Can fold paper sizes from 3 x 5″ to 14 x 25.5″ long
Feed table extension that can handle longer sheet lengths, enabling tri-folding of 25.5″ long sheets from brochures, etc.
Six pre-programmed fold settings
Programmable memory settings for 20 custom folds
Batch counter that can count up or count down
Variable batch data entry
PLC touch screen control panel with pictographs and color display
Static reduction devices
Sound covers standard
Motorized delivery stacker with independent speed control for the drive
Flip deflector, non-marking fold plate technology
Diagnostic messages/fault detection
Jam detection using input and output sensors
Multiple languages to select for display: English, Spanish, French, or German
Units of measurement display in metric or inches

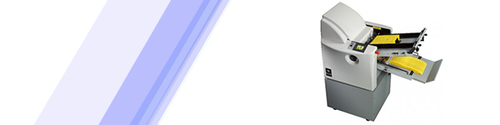

BAUM 714XA Autofold Tabletop Folder 1st Station
With the 714XA automated tabletop folder, Baum continues the tradition of providing the most reliable and rugged folder in a compact and convenient design. The BAUM 714XA offers all of the rugged features of the popular manual setup BAUM 714XLT folder and then adds automation and state-of-the-art features to meet today’s demanding needs along with modern styling.
Maximum sheet size: 14.0 wide x 25.5 in long (35.5 x 64.7 cm)
Minimum sheet size: 3 wide x 5 in long (7.6 x 12.7cm)
