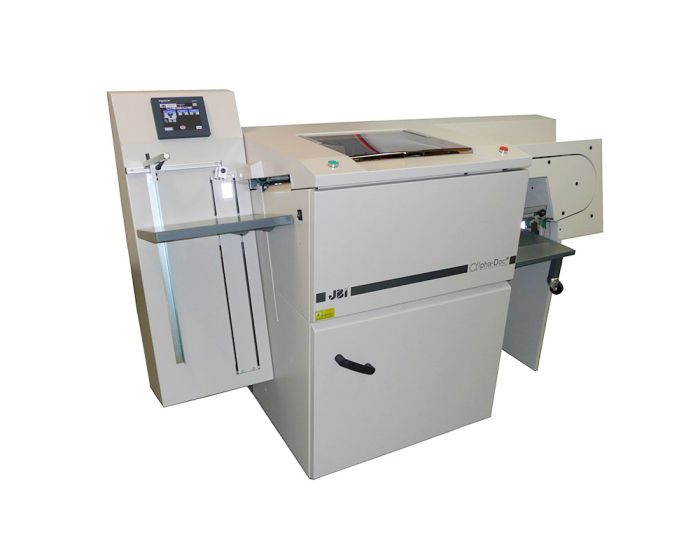

James Burn AlphaDoc MK4
James Burn AlphaDoc MK4
James Burn

AlphaDoc

In stock
SKU: alphadoc
(0)
$58,625.00

Sharing is caring! Click the share button to spread this with your friends and help us reach more amazing people like you!

The AlphaDoc MK4 is a high speed automatic punching machine designed for medium to large size runs involving multiple materials ranging from 70 to 300 gsm including acetates or plastic covers and diverse punching patterns including thumb cuts with maximum punched edge of 350mm (13,75″). It provides a true output of up to 54,000 sheets (80gsm) / hour. With its optional tab jogger, it can also punch pre-collated tabbed sheets and the optional narrow sheet option allows to punch sheets which unpunched edge down to 105mm which is particularly useful for producing desk top weekly planners.


PDF

Call 866-781-BIND or email us for current price offers



High productivity for on demand automatic punching


Punching width : from 138mm (5.5″) to 350mm (13.75″)

Punching thickness : selectable from 0.5 to 1.0mm

Mechanical speed : selectable up to 5,400 cycles / hour
Punching output : up to 54,000 sheets / hour

All above outputs are based on 80gsm plain paper and will vary pending on the nature of the document, the operator skills, the work organisation. Best punching quality is obtained with paper thickness not exceeding 1.5mm.

Additonal Options sold separately:
  • L98007A    Punch tool 3:1 square hole (42) 4x4mm  11 retractable pins margin 2,36mm
  • L98021A    Punch tool 3:1 square hole (42) 4x4mm all (42) retract pins margin 2,36mm
  • L98003A    Punch tool 2:1 square hole (28) 6x6mm  10 retractable pins margin 3mm
  • L98035A    Punch tool 2:1 square hole (28) 6x6mm all (28) retract pins margin 3mm
  • L98009US    Punch tool plastic Spiral .2475" (6.2865 mm) pitch oval hole (58) 4x5mm 21 retractable pins, margin 2,5mm steel head
