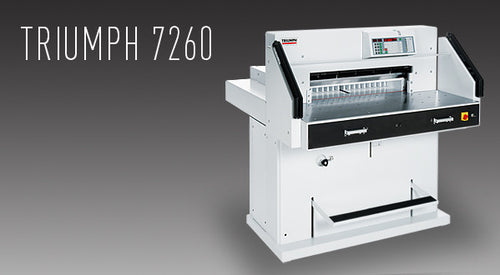

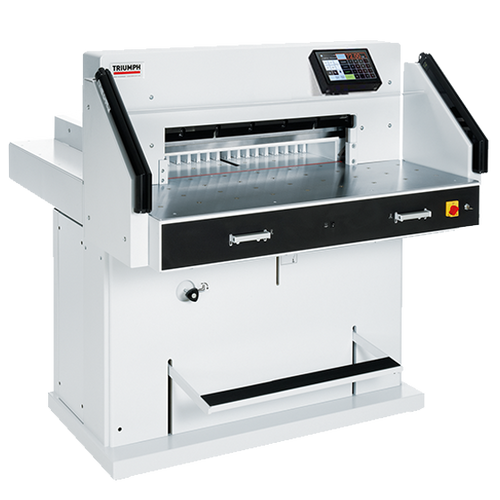

28 inch programmable cutter with hydraulic clamp, power back gauge, 7-inch touch pad control module, and IR safety light beams on front table.
MAPP pricing shown -For sale price email:firstname.lastname@example.org
Order 7260 Cutter or 57260 Package (Cutter, Side Tables, Knife & Sticks)
7260 PDF File
Comprehensive SCS™ safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Hydraulic clamp drive. Foot pedal for pre-clamping. Electric back gauge drive with control module for easy programming. Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper sizes. Memory keys for repeat cuts (manual) and quick setting of frequently needed measurements. Automatic SET function for reference measurement and paper EJECT function with and without program mode. DELETE and INSERT mode for correcting and modifying programs. Automatic correction in case of back gauge displacement. Push buttons for fast back gauge movement (forward and reverse). Integrated calculator. Self-diagnostic system with error indication on display. Electric blade drive with solid steel carrier and adjustable guides. Electronic hand wheel with variable speed control for manual back gauge setting. Clamp pressure is fully adjustable between 550 and 4,400 psi. False clamp plate with optical indicator. Bright, LED optical cutting line. Stainless steel work surface. Standard air tables (front and rear). High quality, German HSS blade. Precision swing cut blade movement. All-metal construction. Includes easy-access tool holder and paper blocking tool. Optional side tables increase work surface. UL and C UL approved.
Dimensions (D x W x H), inches: 60 1/2 x 51 3/8 x 52 1/2 (63 D, 82 1/2 W with side tables)
Shipping weight, pounds: 1,534 (1,622 with side tables)
