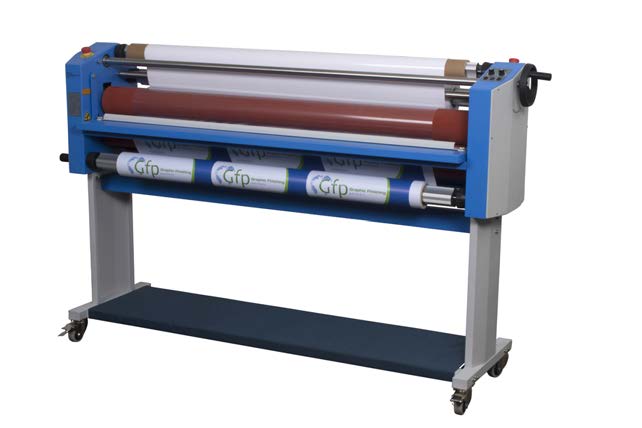

363 TH 63" Top Heat Wide Format Laminator

363 TH 63" Top Heat Wide Format

Wide Format Roll Laminator   ***CALL FOR PRICE***

Sign shops and digital printers now have an affordable option for pressure-sensitive applications. The Gfp 363TH laminator delivers labor-saving features, rugged construction and high quality output in an entry level machine. Building off of the 255C Cold Laminator, the 363TH adds top heat for better overlamination, mounting and board coating results. To make production easier and more efficient, it features new 3” aluminum tube Quick-grip film shafts with width measurements for easy loading and alignment, Integrated Top Liner and Rear Output Rewinds for roll-to-roll applications, and new Metal Alloy Tubular Heaters to reduce breakage.

  • Roller diameter 4.5”
  • Speed and temperature controls
  • Foot pedal
  • 2 Unwind supply shafts
  • Top and rear take-up mandrels
  • Swing up feed table
  •  Integrated top liner rewind
  •  Integrated rear rewind
  • Variable roller gap to 1”
  •  Metal Alloy heater
  •  3” Aluminum Quick-Grip shafts
  •  Chain drive rewinds
  •  Single pressure adjustment
  • Machine stand with casters
  • 120 volt service
  •  cTUVus safety approved
  • 36" table height output

Specifications 363TH
Laminating Width 63”
Roller diameter 4.5”
Roller gap 1”
Rear rewind Included
Max temperature 122º F
Laminating speed 20 ft/min
Unwinds Top/Bottom
Liner rewind Chain drive
Pressure adjustment Hand wheel
Tension adjustment Single knob
Heat method Metal Alloy heater
Max. Roll diameter 10” OD
Power supply 120v 12a
Power consumption 1300 W
Foot pedal Included
Stand with casters Included
Net weight w/ stand 321 lbs
Dimensions 80” x 23” x 48”
Shipping weight machine 500 lbs
507 lbs. 87” x 26” x 31”
Safety agency approval cTUVus

    Includes stand. Optional on-site installation and extended warranty available upon request.
    All pricing includes freight dock to dock, standard.
