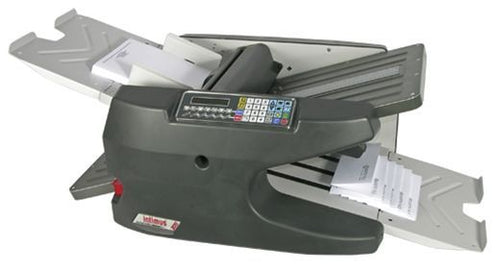

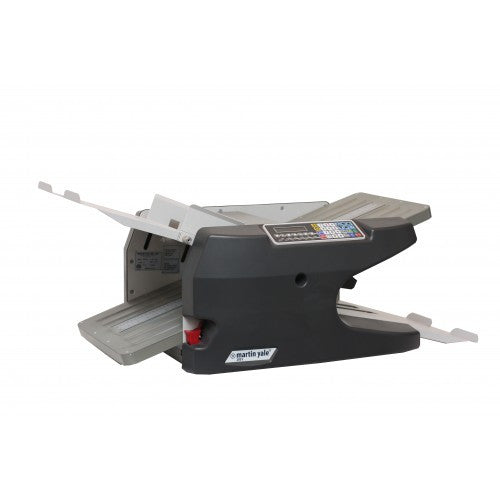

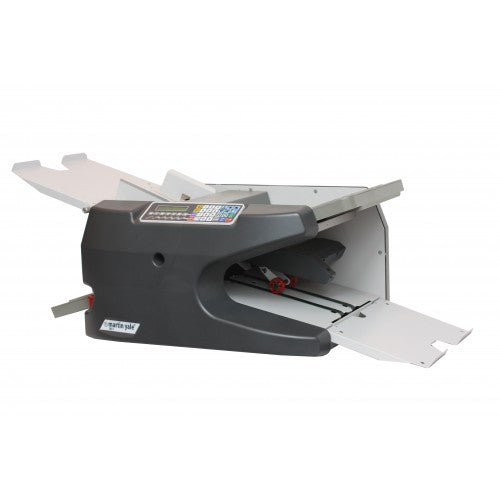

Martin Yale 2051 SmartFold

$4,737.00 Regular price was $7,661.00

Description

Ideal for small print shops, offices and associations.

The Martin Yale® 2051 Smartfold™ is exactly that.  You would never know that folding even the most complicated fold types could be this easy.  It does virtually everything for you, all you need to do is tell it how many, what size and what fold type and it does the rest! Check with us for current sales promotions at sales@justbinding.com

The 2051 Smartfold™:

  • Handles paper weight from 18lb. to  90 lb. index, 68GSM to 166GSM
  • Variable speed ranges from 3,000 to 15,000 sheets per hour
  • Folds sheet sizes from 2.5″ x 5.2″ to 12″ x 18″
  • Feed table capacity can hold up to 500 sheets of 8.5″ x 11″, 20 lb. bond
  • High memory capacity with 7 preset folds and 10 custom folds
  • Capable of feeding a wide range of paper weights without having to adjust the feed system, saving time between fold jobs
  • Diagnostics mode for quick and easy trouble shooting and setup with 7 sensors
  • Fully enclosed fold tables for quieter operation and improved operator safety

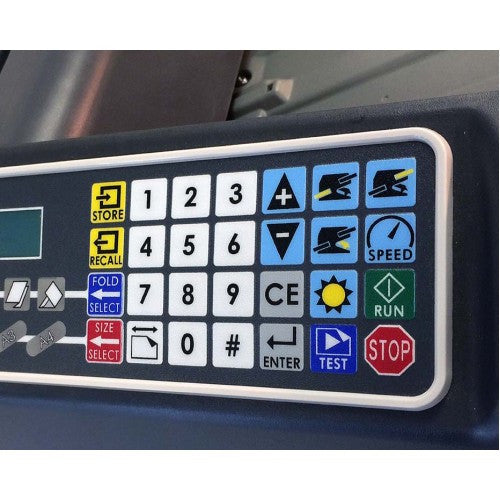

  • 2-line x 20 character LCD display provides operator with visual feedback prompt
  • 5 pre-programmed paper sizes:  8.5″ x 11″, 8.5″ x 14″, 11″ x 17″
  • Automatic shut-off
Fold types:

Seven pre-programmed fold types:  Letter, Z-fold, Half, Double-Parallel, Gate, Engineering  and Church





Product Specifications

Model Number
2051
Max Speed
3,000-15,000 sph
Paper Size Range
2.5 x 5.2 to 12.0 x 18.0 in; A3, A4, A5, Custom
Paper Weight Range
68 gsm to 166 gsm 18# Bond to 90# Index
Max Feed Tray Capacity
500 sheets
Automatic Fold Table Setup
Yes
Automatic Shut Off
Yes
Electrical
115/230v
Product Dimensions
22.2 L x 43.2 W x 17.8 H in (56.0 x 64.0 x 45.0 cm)
Product Weight
102.0 lbs (46.3 kg)

View Specifications: 2051 Specs
